Wurin Wutar Lantarki na Ƙarfe Karfe

Thermal Power Plant Karfe Frame tsari ne mai ɗaukar nauyi na ƙarfe wanda aka ƙera musamman don masana'antar wutar lantarki, ana amfani da shi don tallafawa kayan aiki masu nauyi kamar injin tulu da injin injin turbo, gami da yin hidima a matsayin tsarin manyan gine-gine. EIHE Karfe Structure (EHSS) ƙera tsarin ƙarfe ne tare da fasahar ci gaba. Muna da gogewa a cikin ayyukan makamashin nukiliya, waɗanda suka dace da ƙaƙƙarfan ƙa'idodin tashoshin wutar lantarki.

Aika tambaya

Bayanin Samfura

Thermal Power Plant Steel Frame mainly consists of section steel and steel plates, serving as the core carrier for civil engineering and equipment installation in thermal power plants. Kayayyakin da masana'antar mu ke ƙera suna da fa'idodi da yawa kamar ƙarfi mai ƙarfi, nauyi mai sauƙi, kyakkyawan yanayin girgizar ƙasa da juriya na iska, gami da fashe-fashe da kaddarorin jure lalata.

Our karfe tsarin kayayyakin da aka yafi amfani a cikin guda biyu core tsarin.

▷ Tsarin karfen tukunyar jirgi: tsarin karfe mai zaman kansa da ake amfani dashi don dakatarwa da tallafawa kayan aiki na asali.

▷ Babban tsarin ƙarfe na gidan wuta: babban tsarin ginin da ke ɗaukar raka'a na janareta, dakunan sarrafawa da sauran wurare.

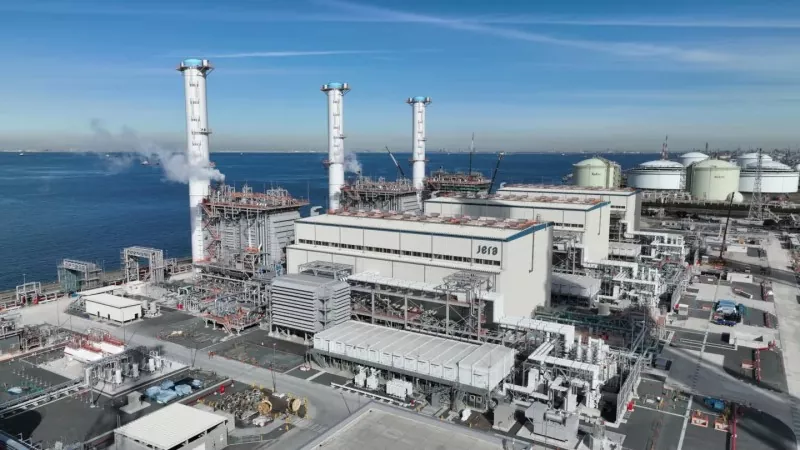

Thermal Power Plant Steel Frame

Matakan wutar lantarki na thermal suna da buƙatu na musamman dangane da kayan, ƙira da kariya. Don saduwa da manyan ma'auni na waɗannan tsarin guda biyu, EHSS yana zaɓar ƙarfe mai inganci kuma yana ba da mahimmanci ga ƙira mai hana wuta da ƙirƙira don gina Tsarin Karfe na Gidan Wuta na Thermal Power Plant.

Rufaffen Wuta	Rufi Kauri	Iyakar Wuta Resistance	Siffofin	Yanayin aikace-aikace
Intumescent	<5mm	1.5-2.0 hours	Dangantakar m surface tare da wasu kayan ado sakamako	Aikace-aikace na cikin gida ko ayyuka tare da buƙatun ƙawata
Ba-intumescent	> 10mm	2.0-3.0 hours	M surface tare da kyau karko	Aikace-aikace na waje ko manyan wuraren haɗarin wuta

Rufin Anticorrosive	Rufi Kauri	Babban Aiki	Layer
Epoxy Zinc mai wadataccen abu mai mahimmanci	70-80 m	Kariyar Katolika	Layer na farko
Epoxy Micaceous Iron Oxide Intermediate Coat	80-125 m	Shamaki rufin asiri	Matsakaicin Layer
Babban Coat na Polyurethane / Fluorocarbon Babban Coat / Fantin Rubber Chlorinated	60-80 m	Juriya na yanayi, juriya na watsa labarai da kayan ado	Babban Layer

Filayen Ƙarfe na Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarfafa yana buƙatar hanyoyin kariya daban-daban don yanayi daban-daban, saboda nau'in yanayi mai haɗari da yawa da ke cikin tsire-tsire masu wutar lantarki.

Yanayin aikace-aikace	Siffofin	Tsarin Rufi	Jimlar Kauri
Ginin Babban Gidan Wuta na Cikin Gida	C3 Muhalli	Epoxy Zinc-rich Primer (60μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (80μm) + Polyurethane Top Coat (80μm)	≥220μm
Firam ɗin Tufafin Karfe na Waje	C5-M Muhalli	Epoxy Zinc-rich Primer (80μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (120μm) + Fluorocarbon Top Coat (100μm) + Kauri Film Rufin Wuta	≥300 μm
Tsarin Kula da Kwal	Babban Humidity / Abrasion	Epoxy Zinc-rich Primer (75μm) + Babban Gina Epoxy Intermediate Coat (150μm) + Babban Coat ɗin Polyurethane Mai Juriya (100μm)	≥325μm
Flue Duct / Yanki Mai Narkewa	Acid mai ƙarfi	Maɗaukakin Zazzabi Phenolic Epoxy Primer (100μm) + Phenolic Epoxy Flake Coating (200μm)	≥300 μm

Tsarin Tsari

Ana isar da samfuran mu na Tushen Ƙarfe Karfe ta hanyar maɓalli 5:

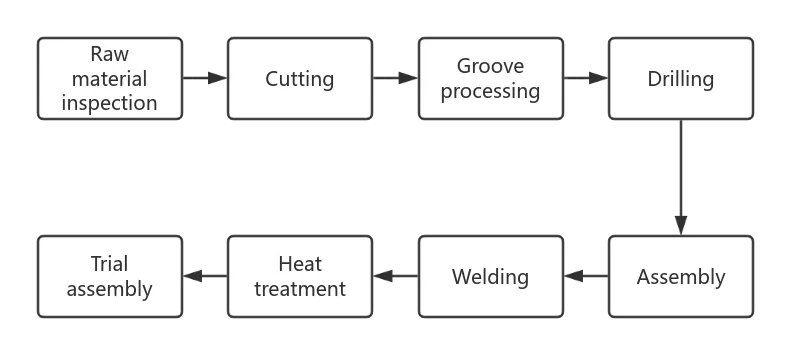

1. Kerawa

Fabrication

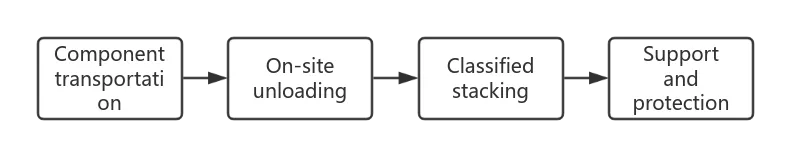

2. Sufuri & Ajiya

Transportation & Storage

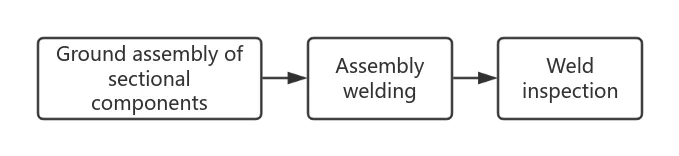

3. Akan Majalisa

On-site Assembly

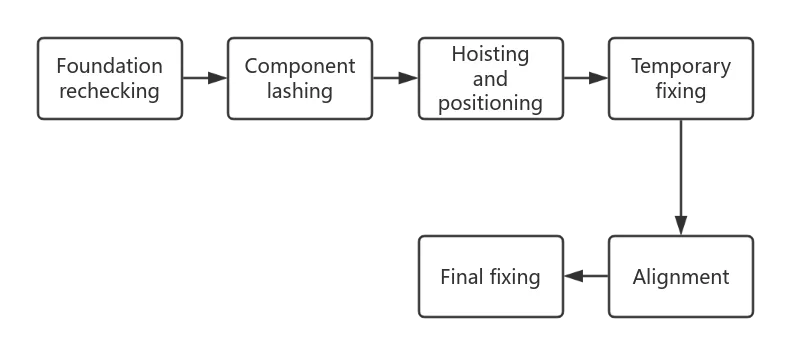

4. Hoisting & Installation

Hoisting & Installation

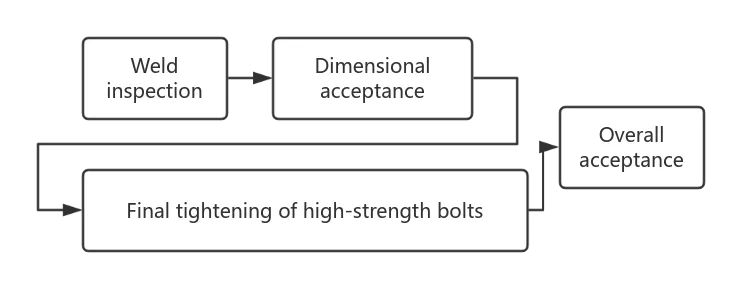

5. Karɓar inganci

Quality Acceptance

Bayan kammala waɗannan matakai, Tsarin Karfe na Gidan Wuta na Thermal Power zai kasance a shirye don sabis a cikin kusan watanni biyu zuwa uku.
