Tsarin Karfe Shuka Chemical

Tsarin Sinadari na Karfe babban wurin gini ne mai haɗari wanda dole ne ya bi ƙaƙƙarfan ƙa'idodin ƙira da buƙatun aminci. A matsayin jagorar kashin baya a cikin dukkan sassan masana'antar gine-gine na lardin Shandong, EIHE Karfe Tsarin (EHSS) yana kula da amincin samarwa da ka'idoji, kuma amintaccen masana'antar ƙirar ƙarfe ce mai aminci.

Aika tambaya

Bayanin Samfura

Tsarin Sinadari na Karfe gini ne na musamman wanda dole ne ya dace da buƙatun aminci na musamman kamar juriya na lalata, kariyar fashewa, kariyar wuta da rigakafin tsutsawa. Lokacin kera irin waɗannan samfuran, masana'antar mu tana sarrafa ingancin samfur sosai daga zaɓin kayan aiki zuwa samarwa da shigarwa, yana tabbatar da ƙaddamar da sauri da ingancin samfuran.

● Zaɓin Ƙa'idar Mahimmanci

Muna ɗaukar ƙarfe mai ƙarfi haɗe tare da fasahar hana lalata don tsawaita rayuwar samfuran mu.

✔ Kayan Gindi:

- Don yanayin gabaɗaya: Q235B ko Q355B carbon tsarin karfe an zaɓi.

- Don wurare masu lalacewa sosai: an fi son karafa na yanayi kamar Q355NH.

- Don sassan da ke hulɗar kai tsaye tare da kafofin watsa labaru masu lalata: 316L ko 304 bakin karfe yawanci ana amfani da su.

✔ Zane Sashe:

- An ba da fifikon sassan rufaffiyar ko sassan yanar gizo mai ƙarfi, tare da tsauraran iko akan ƙaramin kauri na bango.

- Bangaren ƙarfe na bakin ciki mai ƙaƙƙarfan ƙaƙƙarfan ƙaƙƙarfan an haramta shi don abubuwan ɗaukar kaya na farko.

✔ Anti-lalata Shafi:

- Ana amfani da tsarin gashi uku: epoxy zinc-rich primer, epoxy micaceous iron oxide matsakaici gashi, da polyurethane ko fluorocarbon topcoat.

- Jimlar busassun kauri daga fim ɗin ba zai zama ƙasa da μm 200 ba.

● Tsarin samarwa

Tsarin Tsarin Karfe Tsirrai suna ɗaukar tsauraran matakan samarwa don tabbatar da ingancin abubuwan da aka kawo.

Alamar	Farashin EHSS
Hanyar Hanya	Mabuɗin Maɓalli	Maɓallin Maɓalli
Saita & Alama	An tanada izinin shrinkage walda	Tsawon tsayi: 0.6-1.0 mm / m; Juyawa mai jujjuyawa: 1.0-1.5 mm kowace fasin walda
Yanke & Barkewa	Yanke ingancin farfajiya	Flatness ≤ 0.05t (t = kauri farantin) da ≤ 2.0 mm; Girman ≤ 50 μm
Gefen Shiri	Daidaitaccen girman girman bevel	Bevel kwana: 30°-35°, tushen fuskar: 1.0-2.0 mm, tushen rata: 2-3 mm
Yin hakowa	Daidaitaccen rami mai ƙarfi mai ƙarfi	Haƙuri na diamita: +0.3 ~ +0.5 mm; Haƙuri tazarar rami: ± 1.0 mm
H-beam Majalisar	Flange farantin perpendicularity	Ƙaƙwalwa ≤ 2.0 mm (tsawon sashi ≤ 500 mm) ko ≤ 3.0 mm (> 500 mm)

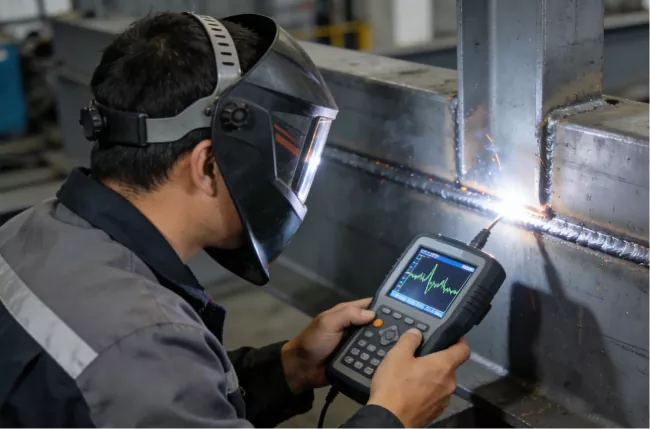

Walda	Weld ingancin aji	Class 1 welds: 100% gwajin ultrasonic; Class 2 welds: duba samfurin ≥ 20%
Girman ƙafar weld	Ci gaba da buƙatun walda	Yanayi mai lalacewa sosai: girman ƙafar walda ≥ 8 mm
Gabatar da taro	Ramin wucewa ƙimar	Ƙimar wucewa 100% tare da fil ɗin gwaji
Abrasive fashewa	Tsafta da Tsafta	Primer ≥ 60 μm, Matsakaicin gashi ≥ 80 μm, Topcoat ≥ 60 μm, Total bushe fim kauri ≥ 200 μm

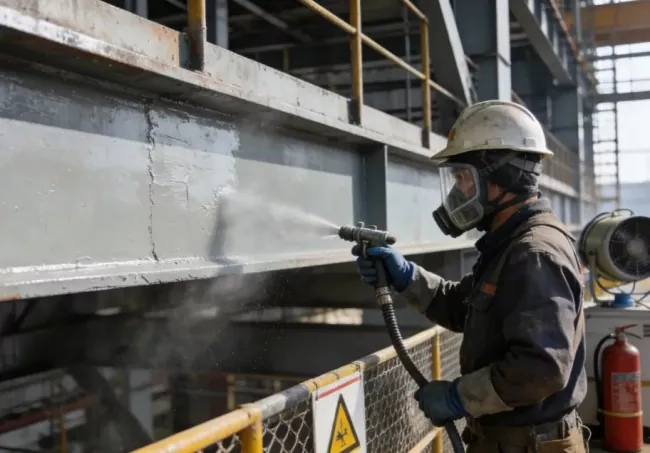

Aikace-aikacen Rufi	Sarrafa Kauri Layer	Farko ≥ 60 μm, Matsakaici Coat ≥ 80 μm, Topcoat ≥ 60 μm, Jimlar Kauri na Fim ≥ 200 μm.

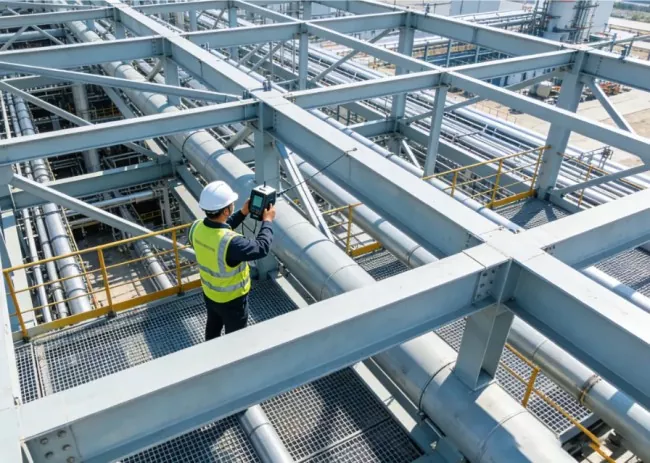

Binciken Rufe	Gwajin Samfuran Kauri Fim	85% na ma'auni ≥ ƙimar ƙira, mafi ƙarancin ma'auni ≥ 85% na ƙimar ƙira
