Gidan Badminton Hall Karfe Construction

Gidan Badminton Hall Karfe na cikin gida ƙwararren wurin wasanni ne wanda aka gina tare da tsarin firam ɗin ƙarfe. Tsarin ƙarfe yana ba da damar ƙaramin farashi mai girma-tsayi da sarari marasa ginshiƙai, yana mai da shi ingantaccen tsarin gini na zamani don zauren badminton. Tare da fiye da shekaru 20 na ci gaba a cikin masana'antar tsarin ƙarfe, EIHE Steel Structure (EHSS) wani haɗin gwiwar masana'anta ne wanda ke haɗa ƙira, bincike da haɓakawa, samarwa, tallace-tallace da gini.

Aika tambaya

Bayanin Samfura

Badminton yana da buƙatu na musamman don tsayayyen tsayi, tsaftar gani da yanayin haske. Gidan Badminton Hall Karfe na cikin gida wanda masana'antarmu ta yi yana ɗaukar tsarin ƙarfe, wanda zai iya cika buƙatun wasannin badminton. Bugu da kari, samfuranmu suna jin daɗin fa'ida ta musamman a farashi, lokacin gini da kariyar muhalli.

BAYANI NA GASKIYA
Alamar		EIHE
Wurin Asalin		Qingdao, China
Samfura/Sabis		Tsarin ƙarfe da ginin da ke da alaƙa
Sharuɗɗan farashi		FOB / EXW
Sharuɗɗan Biyan kuɗi		T/T
Shiryawa		Kafaffen da karfe frame
Sufuri		Jirgin ruwan teku
MOQ		200 m²
Lokacin Bayarwa		20-50 kwanaki
Tsarin Tsarin Mahimmanci	Mabuɗin Abubuwan Maɓalli		Tsarin rufewa
Tsarin Tsarin Arch Truss Planar	Babban Tufafi / Rufin Tufafi		Karfe Rufin Panel
Tsarin Suspend-Dome	Rukunin Karfe		Thermal Insulation Cotton
Portal Rigid Frame / Karfe Frame	Sakandare Truss		Ciki Metal Panel
Modular Karfe Truss System	Rufin Purlin		Bango mai ɗaukar sauti
Tsarin Tsarin Tsarin Haɓaka	Takaddama Tsakanin ginshiƙai		Tushen Hasken Rana
	Wall Purlin		Na'urar Ventilator na Halitta
Babban Amfani		Abubuwan da suka dace
Sharuɗɗan Kayayyakin Kayayyakin ƙwararru		Wuraren Gasar Ƙwararru
Madaidaicin Tsayin Tsayi		Wuraren Gasar Ƙwararru
Dimmable Professional Lighting		Zauren Badminton Commercial
Gudun Gina Matuƙar Sauri		Makaranta / Wuraren Al'umma
Babban iyawa		Cibiyoyin Fitness na Kamfanin
Ciwon Sauti da Rage Surutu		Zauren wasanni masu aiki da yawa
Bayyanar Gine-gine
Tasirin farashi

Ƙididdiga na Fasaha

Gidan Badminton Hall Karfe na cikin gida, a matsayin wuri na musamman da aka tsara don badminton, yana gabatar da buƙatu na musamman don hangen nesa da sarari. Samfuran mu sun haɗu da ƙirar aikin ƙwararru tare da ginin ƙirar ƙarfe mai inganci mai inganci kuma yana da inganci mafi inganci.

Bayanan asali
Babban Matsayin Material	Q235B/Q355B
Tsawon	21m-60m+
Nau'in Sashe	welded H-beam / Hot-birgima H-beam / Karfe bututu Truss
Juriya na Wuta	Darasi na II
Anti-lalata	Tsarin Rubutun Gishiri mai zafi / Galvanized
Rayuwar Sabis ɗin Zane	Sama da Shekaru 50
Tsarin rufewa
Ƙarshen bangon waje	Rubutun Ƙarfe na Aluzinc mai Lalacewa
Insulation Layer	Gilashin ulu
Ƙarshen bangon ciki	Rubutun Karfe Mai Launi mai Duhu / Matte ko Panel mai ɗaukar sauti
Tsarin bene	Ƙwararrun Ƙwararrun Wasanni
Wuri da Tsayi Tsawo
Girman kotu ɗaya	13.4m × 6.1m
Layin gefen waje	≥1.5m
Yanki mai shinge a wajen layin ƙarshen	≥2m
Bayyana tsayi	≥8m ku
Tazara tsakanin kotuna	≥2m
Ƙirar Ƙirar Tsarin Gida
Rufin Matattu Load	0.30 kN/m²
Rufin Live Load	0.50 kN/m²
Load da iska	0.50 kN/m²
Ƙarfin girgizar ƙasa	Darasi na 8
Rufin Tsarin Nauyin	Kimanin 0.23 kN/m²

Kwarewar Aikin

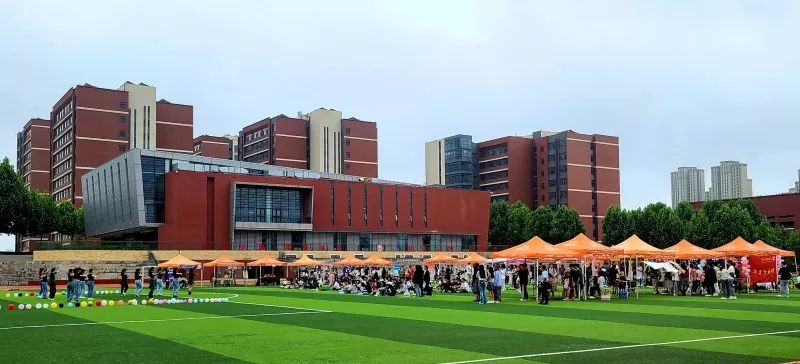

Gymnasium na Jami'ar Fasaha ta Qingdao babbar harabar cedakin motsa jikiaikin da muka isar da kuma samfurin abin koyi na kayan aikin mu na Badminton Hall Karfe na Gine-gine. Tare da jimlar bene na murabba'in mita 160,000, ya haɗa da kotunan wasan tennis 6. Bayar da muke bayarwa tana wadatar rayuwar harabar kuma tana ba da malamai da ma'aikata da wuraren aiki don rayuwa mai kyau.

Indoor Badminton Hall Steel Construction

Tuntube mu

Takaddun shaida

Farashin Farashin EHSSHaɗaɗɗen sana'a ce wadda kasuwancinta a ƙasashen waje galibi ya shafi sarrafa kasuwanci da gine-ginen injiniya. Kasuwancin mu yana hidimar kasuwannin cikin gida da na ƙasa da ƙasa kuma yana buƙatar bin yanayi da ƙa'idodi daban-daban na ƙasa da ƙasa, yana mai da cancantar cancantar mahimmanci. EHSS ta sami takaddun shaida na kasa da kasa na yau da kullun ciki har da ISO, CE da AISC, yana ba mu damar samar da samfuran Ginin Gidan Badminton Hall Karfe ga abokan cinikin ƙasashen waje na duniya.

● Gina, Gabaɗaya Kwangila da Ƙwarewar Ƙira

Construction, General Contracting and Design Qualifications

● Takaddun shaida na ƙasashen waje

Overseas Certificates

A ƙarshe, samfuranmu na cikin gida na Badminton Hall Karfe na Gine-gine suna da cikakkiyar yarda da ingantaccen inganci. An kera shi da tsarin karfe, samfuranmu na iya ba da ƙwarewar mai amfani na musamman.
